Product Description:

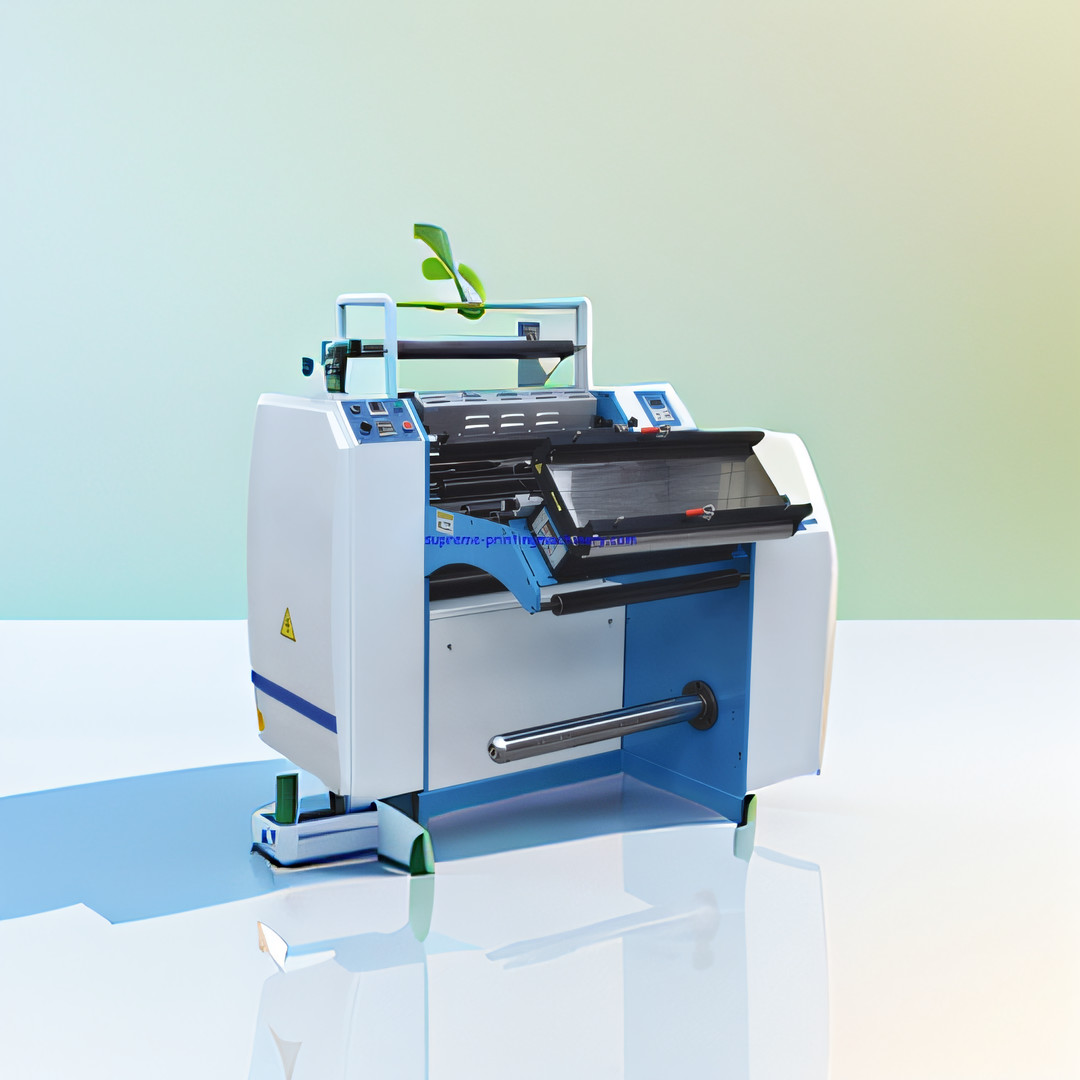

The machine has a compact structure, which greatly saves land space for enterprises. It adopts oil pressure constant temperature heating control to guarantee the quality of printed products. Instead of ordinary cold film, pre coating film is used, which is lower in cost. Furthermore, magnetic powder tension control for unwinding and rewinding is adopted to guarantee the machine quality. An automatic web guide is employed, thus even with uneven products, they can still be perfectly coated with lesser materials used. This machine is an indispensable post press helper for commanding printing enterprises.

Applications:

This machine is an indispensable assistant for major printing enterprises at the post press stage.

It’s able to significantly increase the efficiency and accuracy of printing.

In addition, due to the compact design, it is free from the need of maintenance.

Customization:

Brand Name: Supreme

Model Number: FM-350

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Fumigation Wooden Box

Delivery Time: 30-60 Working Days

Payment Terms: TT; LC

Supply Ability: 20sets/month

Warranty: 1 Year

Total Power: 16.5kw

Machine Weight: 450kg

Model: FM-350

Max Laminating Speed: 65m/min

Our STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL is specially designed for Bopp Matte Laminating Film Thermal Lamination Pre-coating Film for Laminating Machine, Automatic Water-based Glue and Pre-coating Film Lamination Machine, Hot melt BOPP plastic film roll laminator pre-coated paper machine.

Support and Services:

We provide technical support and services for our STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL. Our team of highly trained professionals are available to answer any questions or provide guidance on the installation, operation, maintenance, and repair of your machinery. We have a variety of technical resources available including:

• Online manuals and tutorials
• Live chat support
• Phone support
• Onsite technical advice
• Remote technical assistance

If you have any questions or issues with your STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL, please don't hesitate to contact us.

Packing and Shipping:

STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL is packaged with strong, fumigation wooden boxes The machines are shipped by truck, sea, or air, depending on the customer’s needs.

FAQ:

Q: What's the brand name for this STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL?

A: The brand name is Supreme.

Q: What's the model number for this STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL?

A: The model number is FM-350.

Q: Where is this STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL made?

A: It is made in China.

Q: What certification does this STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL have?

A: It has CE certification.

Q: What's the minimum order quantity for this STEP-BY-STEP GUIDE FOR USING A ROLL LAMINATING MACHINE - MAX LAMINATING SPEED 65M/MIN MAGNETIC POWDER TENSION CONTROL?

A: The minimum order quantity is 1.

Specifications:

model	FM-350
Max paper diameter	600mm
Suit for paper thickness	105-500gsm
Max laminating speed	65m/min
Total power	16.5kw
Machine weight	450kg
Machine size	1655*1030*1235mm

1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction

during processing.

2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it

3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material

4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time

5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.

6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating

7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast

8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.

9:paper drawing:
