Product Description:

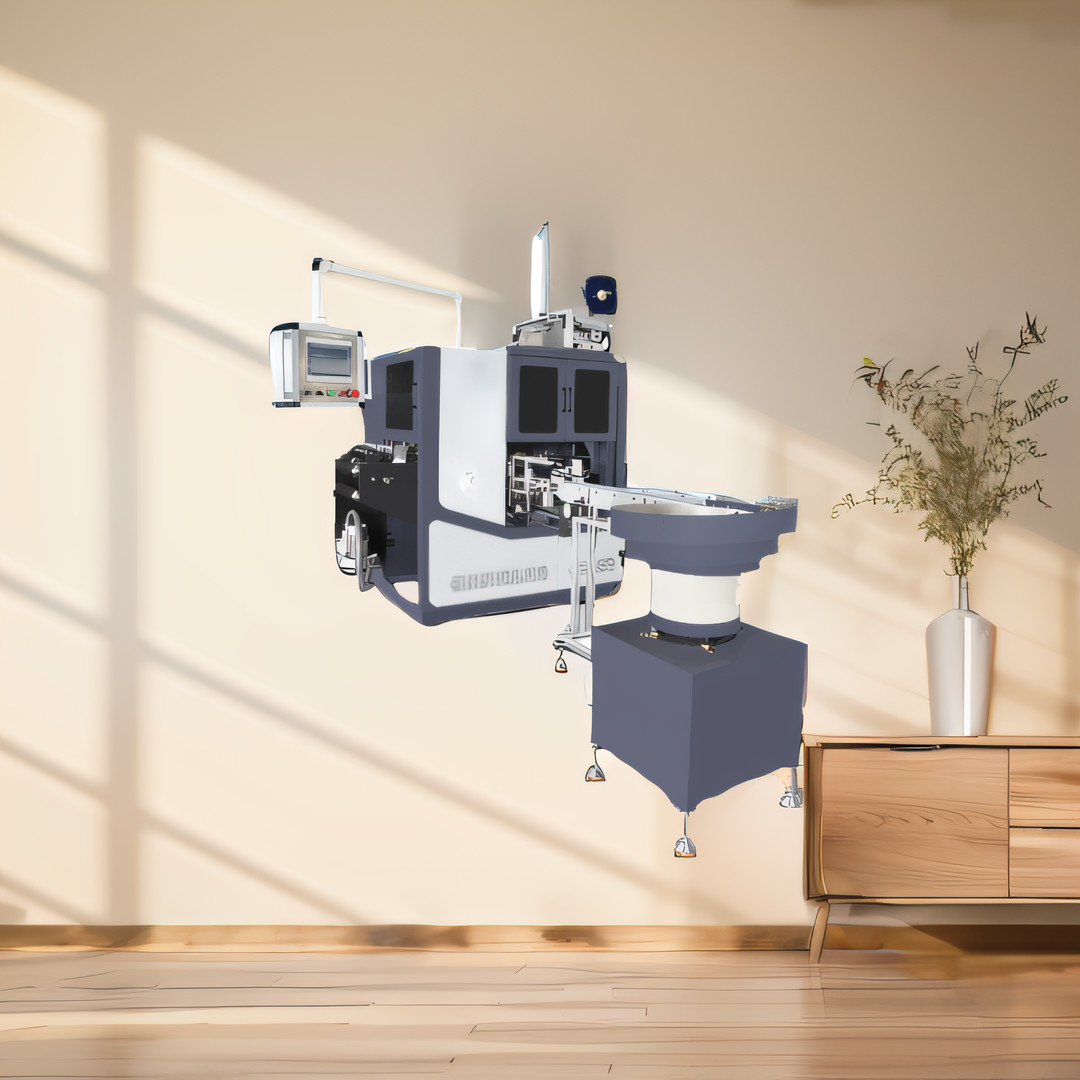

Automatic Turret 4 shafts rewinder is a fully automatic rewinding machine designed for label production, which can be easily connected to a slitting machine or other multi-functional machinery with slitting station for non-stop and highly efficient mechanism.
It boast a wide range of features, such as: automatic core loading feature that comes equipped with a storage tower for small cores, automatic feeding system with mechanical arm to ensure quick and accurate positioning of cores onto the rewind shaft, PLC and touch screen automatic control for an easier operation, automatic application of glue (glue-type machine) to cores, 4 spindle automatic turret rewinding, automatic roll eject system, ability of automatic labeling as standard, no changeover times involved, maximum speed of 120m per minute, double side heavy body machine to ensure stable running at high speed, professionally-customized turret that is maintenance-free, and an optimized combination of mechanical and electrical components which can realize single expansion shaft for eight die rewinding roll without biting the roll.
Applications:
The rewinder is suitable for connecting with rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a quick release air-expansion shaft of 1 inch, 1.5 inch and 2 inch size. It eliminates the need of manual mechanical adjustment when changing the size of reels and automatically adjusts the reels size for reducing the labor intensity, which facilitates intelligent production.
Customization:
Customized Services for CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET
- Brand Name: Supreme
- Model Number: SZ
- Place of Origin: China
- Certification: CE
- Minimum Order Quantity: 1
- Price: Negotiable
- Packaging Details: Fumigation Wooden Box
- Delivery Time: 50-60 Working Days
- Payment Terms: TT;LC
- Supply Ability: 30sets/month
- Packaging: Wooden Box Fumigations
- Product Name: Label No Glue Turret Slitter Rewinder Semi Auto And Full Automatic Labeling System
- Applications: Full Rotary/Semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/Slitting Machinery
- Keywords: Small Roll Slitter Rewinder for Adhesive Label with Turret, Small Roll Slitter Rewinder for Adhesive Label with Turret, What is a turret rewinder?
Support and Services:
CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET provides technical support and services including:
- Installation and commissioning
- Training and certification
- Maintenance and repair
- Software and hardware updates
- Troubleshooting and technical support
Packing and Shipping:
The CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is packaged and shipped with the following steps:
- Examine the machinery for any damages and defects.
- Package the machinery with protective materials such as film wrap, fumigation wooden box.
- Securely attach the package to the shipping pallet.
- Label the package with the item's name and shipping mark.
- Ensure the package is sealed and secure.
- Transfer the package from the warehouse to the shipping carrier.
FAQ:
- Q: What is the Brand Name of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
- A: The Brand Name of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is Supreme.
- Q: What is the Model Number of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
- A: The Model Number of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is SZ.
- Q: Where is CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET produced?
- A: CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is produced in China.
- Q: Is CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET certified?
- A: Yes, CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is certified with CE.
- Q: What is the minimum order quantity of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
- A: The minimum order quantity of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is 1.
-
-
Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece
3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces
5. Tool box: 1 box
6. internal hexagonal wrench:1 set
7: open spanner:10-17:1 group
8: Slotted screwdriver and cross screwdriver: 1piece/each
9: Level adjuster screw: 4 piece
10: circlip plier: 6#: 2 pieces
11:Oil gun: 1 piece
12:magnetic valve:DC24V:2 pieces
13:Relay:DC24V:2pieces
14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece
15:330/450/570 knife:1 pieces
16:Auto labeling device:1 set
Specification:
| Machine Model | SZ-330 | SZ-450 | SZ-570 |
| Max rewinding diameter (glue type) | 350mm | 350mm | 350mm |
| Max rewinding diameter (glue free) | 200mm | 200mm | 200mm |
| Max Paper feeding | 330mm | 450mm | 570mm |
| Max rewinding speed | 50-120m/min | 50-120m/min | 50-120m/min |
| Mini rewinding width | 30mm | 30mm | 30mm |
| Power source | 380V/3P/50HZ | 380V/3P/50HZ | 380V/3P/50HZ |
| Power | 13 kw | 13 kw | 13kw |
| Air source | 0.8Mpa 1m3/min | 0.8Mpa 1.5m3/min | 0.8Mpa 1.5m3/min |
| Machine Dimensions | 2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) | 2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) | 2020x2200x2800mm (glue type) 3700 x2200 x2800 (glue free) |
| Machine weight | 2500 kgs (glue type) 3500 kgs (glue free) | 2500 kgs (glue type) 3500 kgs (glue free) | 2800 kgs (glue type) 3800 kgs (glue free) |
The advantage of ours machine(finished by glue-less non-stop turret rewinder):
1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least
About us:
Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.
Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!
Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
-
