High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake
https://www.youtube.com/@labelturretrewindingmachinery
| Usage characteristic |
| This machine is used to cut all kinds of roll materials such as Label, paper. |
| FEATURE |
| 1. The rewinding shaft working by motor drive directly. It use vector frequency inverter to realize automatic tension control. |
| 2. Rewinding air shaft can unloading, it is convenient for unloading (optional auto unloading device). |
| 3. Magnetic powder brake is used to unwind, and roll diameter accounted automatically by PLC, and automatic tension control. |
| 4. Loading and unloading material on the unwind section adopts air shaft to load and unload material, the roll can be lifted up and down pneumatically, hence it is convenient to load and unload material with high efficiency, automatically rectify the deviation when unwinding. |
| 5. Slitting adopts circular knife for slitting, disk tidy, have edge waste device. |
| 6. The system has meter counting, automatic stop by setting length you need first. |
| 7. The system has perfect mechanic, electric and pneumatic design, also good safety protection. |
| |
| Model | B-1300 |
| Width of raw material | 1300mm |
| Max. Diameter of unwinding | Φ1000mm |
| Machine speed | 30-300m/min |
| Max. Diameter of rewinding | 1000mm |
| Slitting and rewinding width | 30-1300mm |
| Error correction accuracy | ±0.1mm |
| Weight of machine | 3800kg |
| Total power | 15kw |
| Overall dimensions(L×W×H) | 3600×2900×1900mm |
| Rewinding/Unwinding paper core dia | 3" |
| Unwinding magnetic powder brake | 10 kg |
| Main motor | 4 kw |
| Rewiding motor | 4 kw (2 pcs) |
| Suitable material | Paper, adhesive sticker label, etc |
| Configure of Equipments, and Interrelated Variable |
| Unwind Section: Structure: 1. Separated unwinding frame, with air shaft, automatic hydraulic material loading device 2. Horizontal edge position controlling system 3. automatic tension controller |
| |
| Traction transmission device: Structure: 1. AC vector inverter drive 2. Synchronized belt drive 3. adopt import Bearing 4. double roller face to face rolling type |
| |
| Slitting Section: 1. Adopt round knives 2. Waste trim extractor |
| |
| Rewind Section: 1. double air shafts, to rewind up and down 2. automatic tension controller 3. air shafts can be moved away 4. double frequency motors for rewinding |
| |
| Material Unloading: automatic material unloading device, can unload the final slitted material on the ground automatically. |
| |
| Machine Frames: 1. with High strength and low stress alloy cast iron wall plate. 2. wall plate secondary stress relieving, with better stability. |
| |
| Pneumatic hydraulic system: adopt pneumatic and hydraulic device, operate by the panel, execute through electromagnetism valve, fully automatically, reducing labor intensity |
| |
| Electrical control system 1. Man-machine interface, PLC control, advanced technology. 2. Man-machine interface, display and set the main speed, rewinding length, and tension setting, taper setting. |
Support and Services:
High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake Technical Support and Services
We provide technical support and services for High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
Packing and Shipping:
Packaging and Shipping
High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
FAQ:
Q: What is the Brand Name of High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake?
A: The Brand Name is Supreme.
Q: What is the Model Number of High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake?
A: The Model Number is B-1300.
Q: Where is the Place of Origin of High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake?
A: The Place of Origin is China.
Q: What is the Certification of High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake?
A: The Minimum Order Quantity is 1.
|
|

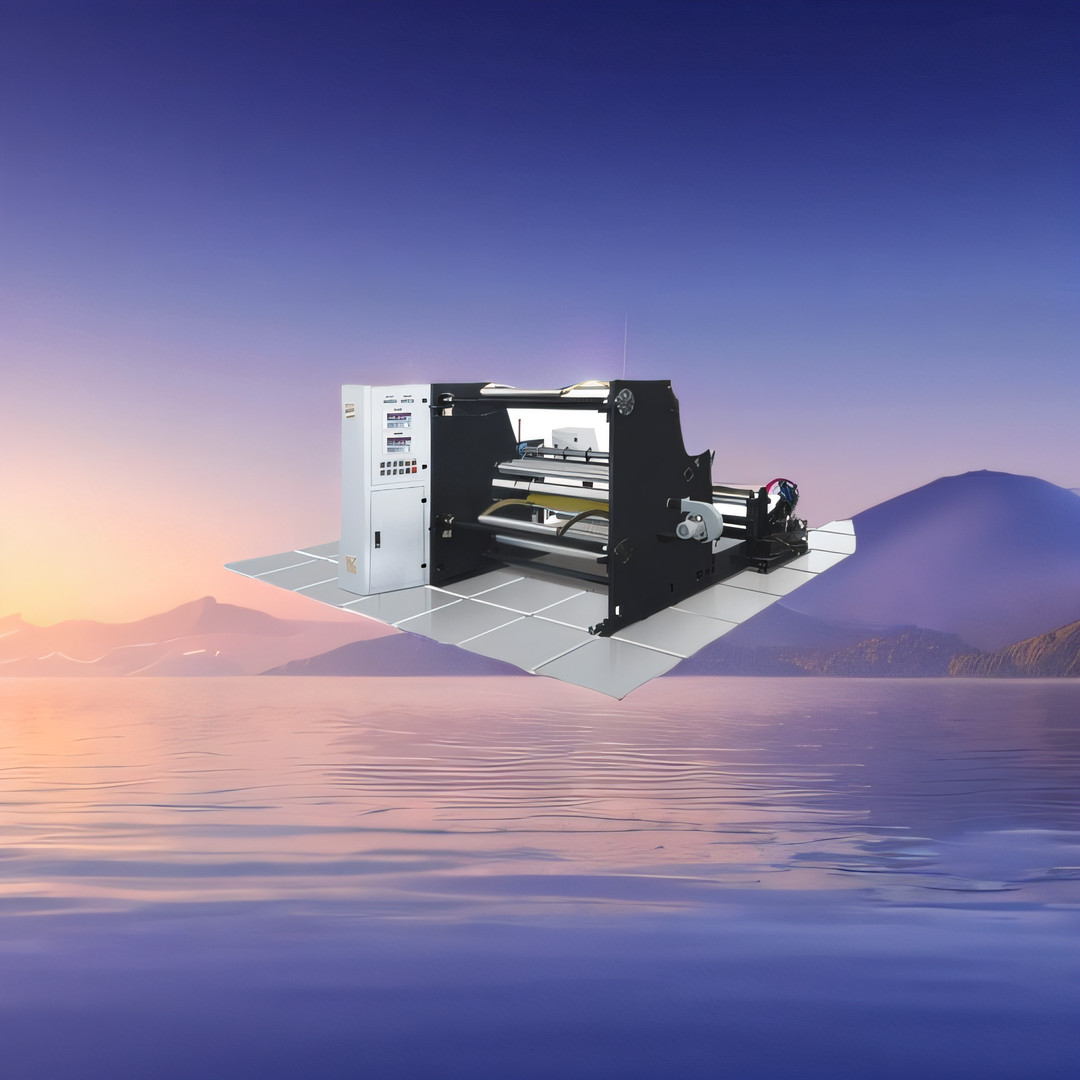

High-speed Slitting Machine (rewinding and unwinding max diameter can be 1000mm) ultrasonic web guide pneumatic brake Images
|
