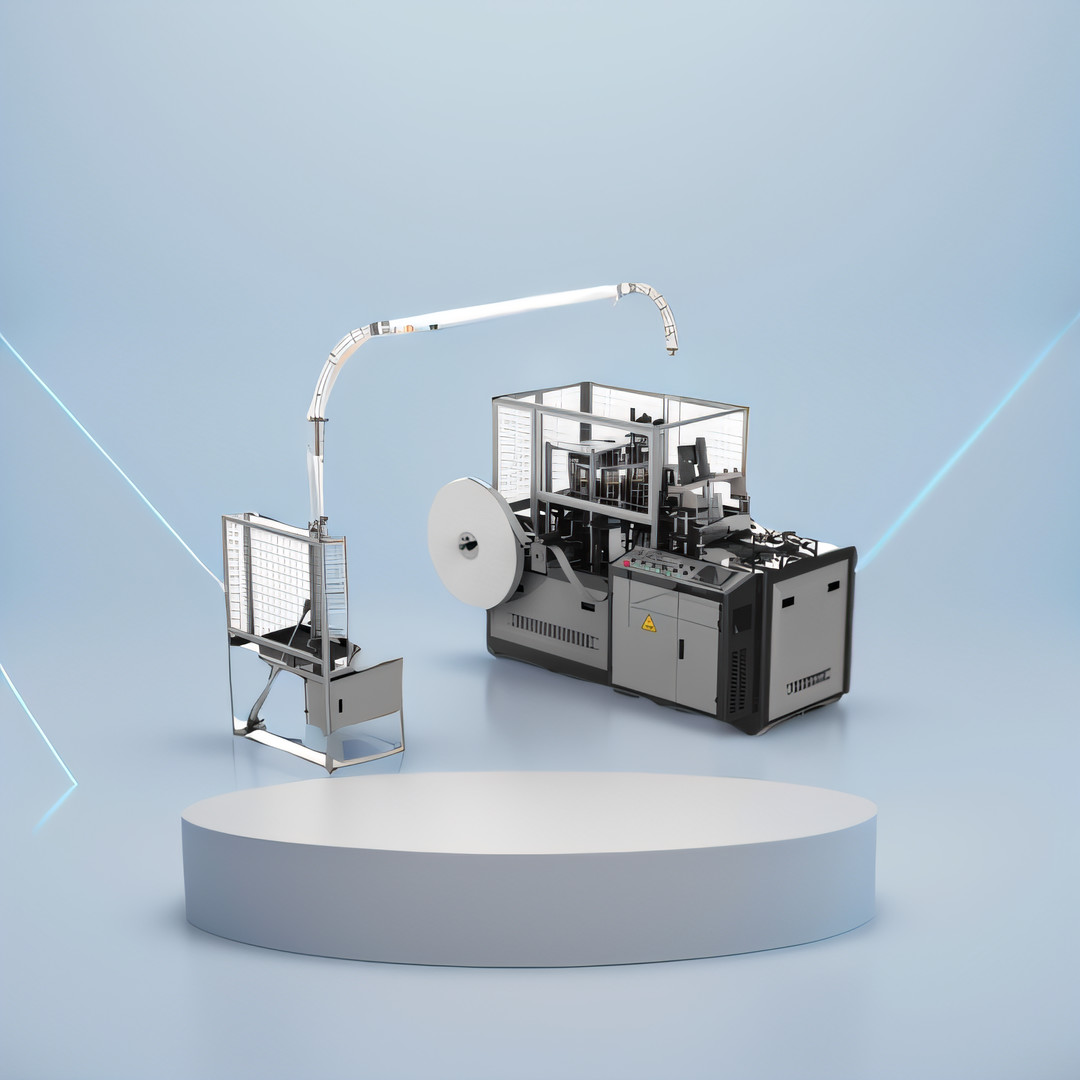

ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen

ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen

http://www.youtube.com/@labelturretrewindingmachinery

speed:70-85 pcs/min or 90-110pcs/min

material :

1:Single PE coated paper( popular for hot drink cups copper heater+ heater knurling for cup bottom heating)

2:Single double PE coated paper( popular for hot and cold drink cups ultrasonic heater+ 1 side PE paper by heater knurling, 2 side PE paper by cool device knurling for cup bottom heating)

Paper weight:1:140~250gsm, 2:140-350gsm

Cup bottom knurling: heater knurling( if use single PE coated paper)

Size:1.5-16oz( Mould exchangeable, max cup height:136mm, max bottom width:72mm)

HS Code:8441309000

Optional:

1:PLC+touch screen

2:Safety cover

3:Cup collection

4:Ultrasonic heater

B:bottom diameter:70/35 mm
T:mouth diameter:90/45 mm
H:height:135/30 mm
Bottom knurling depth:
Min 4mm-max 10mm(popular 5mm)
Top curling rim diameter: popular about 2.5-3

Work energy consumption:6.5KWH/8.5KWH
Voltage: 50/60HZ,380V/220V(better use 380V,3P)or special power requirement
machine weight:GW/NW: 1800/1700 KG
machine size: 2100 x 970 x 1700 mm( machine packing size)

Our advantage:

1:Delta PLC Control and touch screen, working data can be showed on the control panel, easier operation( optional)

2:8 molds or 10 molds

3:Quality OPEN CAM control main divide movement( instead of gear box), easier maintenance, stable and reliable, easy replace broken parts)

4:Main mechanism and moving parts are controlled by quality gears, which is more efficient and more stronger than chain and axis

5:Full Gear System Only One Small Chain in Machine

Normal design Chain system in machine

Machine different parts connected by Chains which only support for Lower speed (Stable running speed lower than 60 pcs each min) Also Chain with short span life(Span Life round 2 years)

Support and Services:

We provide technical support and services for ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Minimum Order Quantity of ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen?

A: The Minimum Order Quantity is 1.

ZBJ-E OPEN CAM Gear transmission Paper Cup Machine 90-110pcs/min single double coated pe paper ultrasonic touch screen Images
